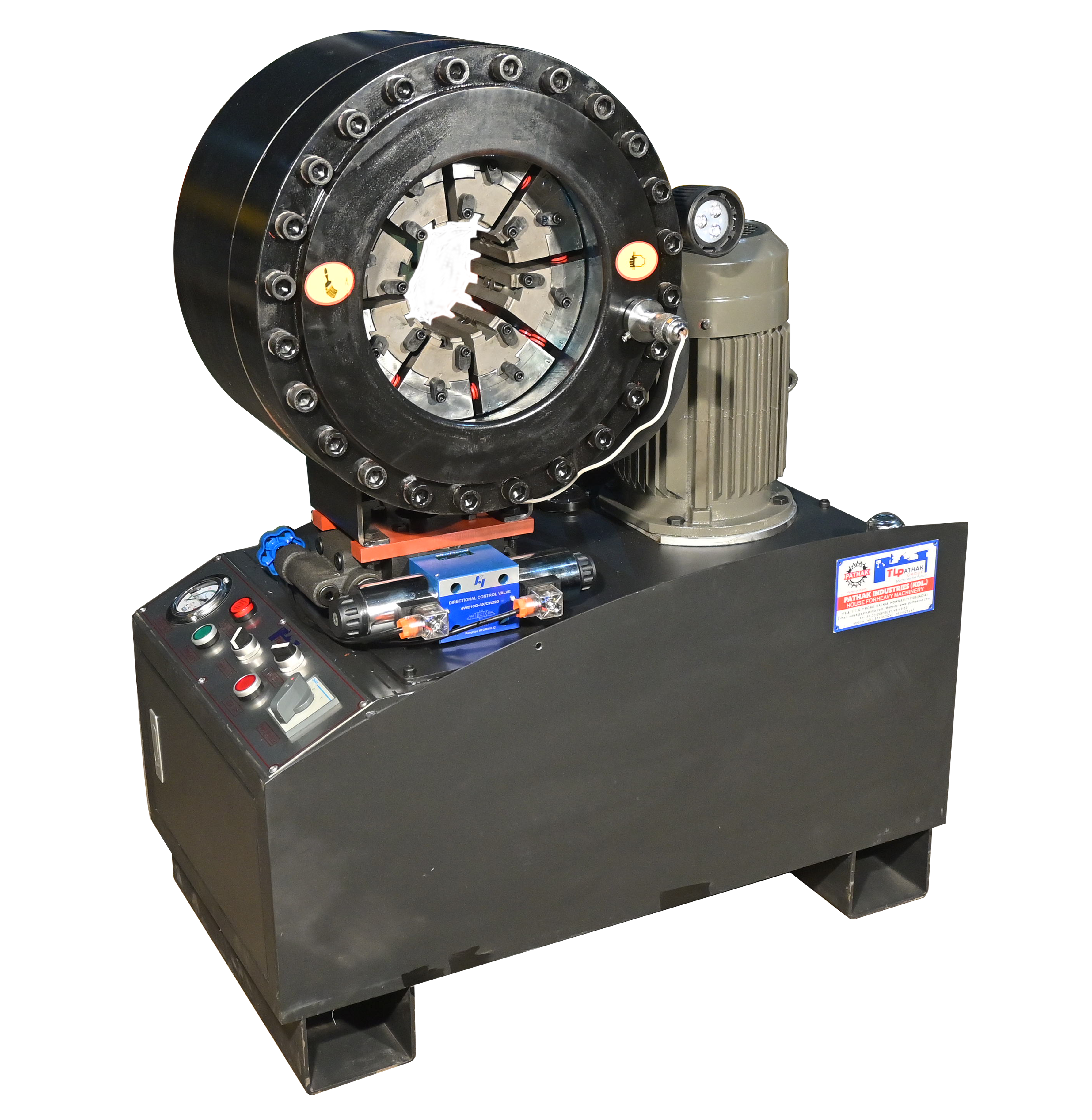

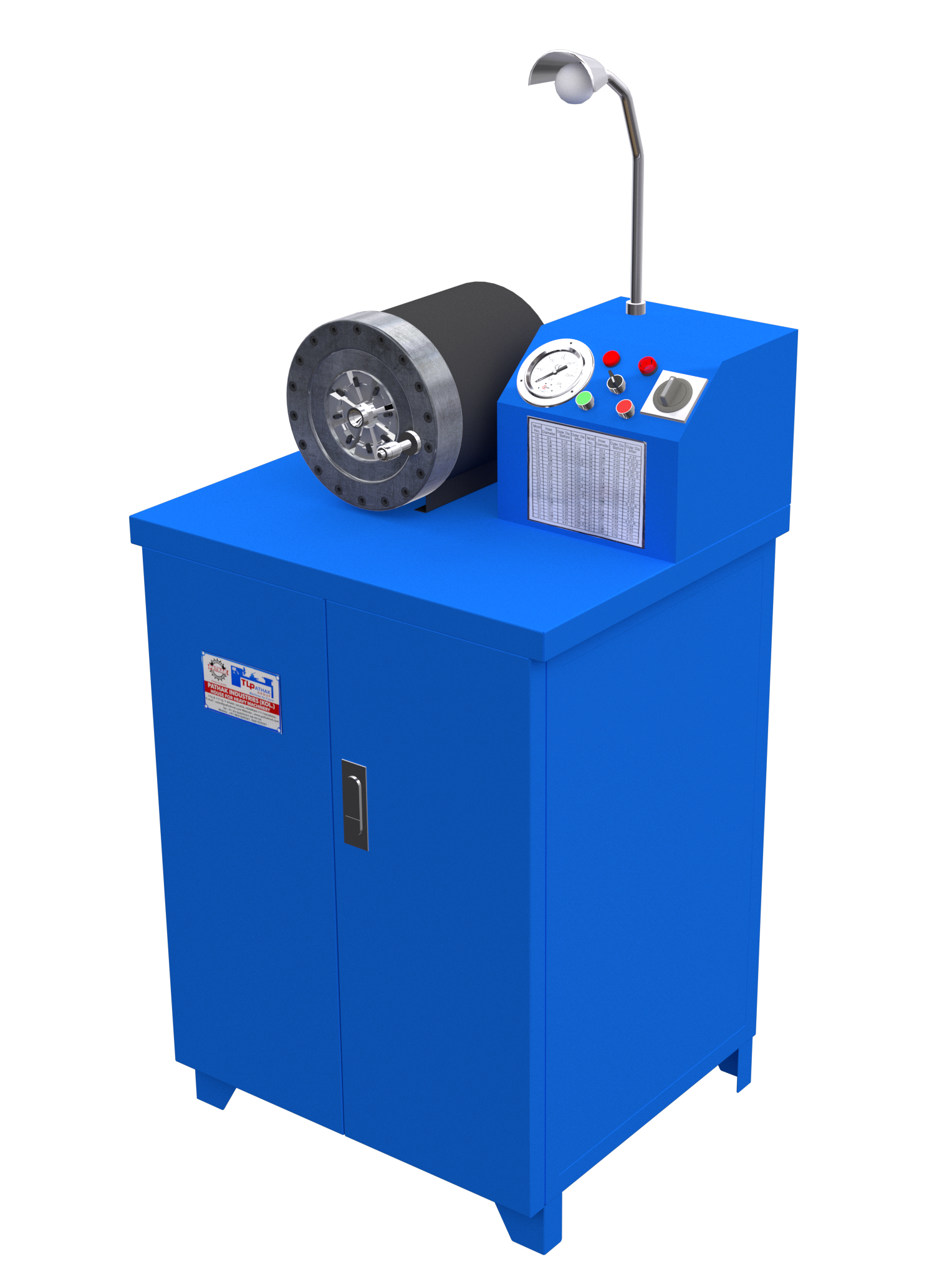

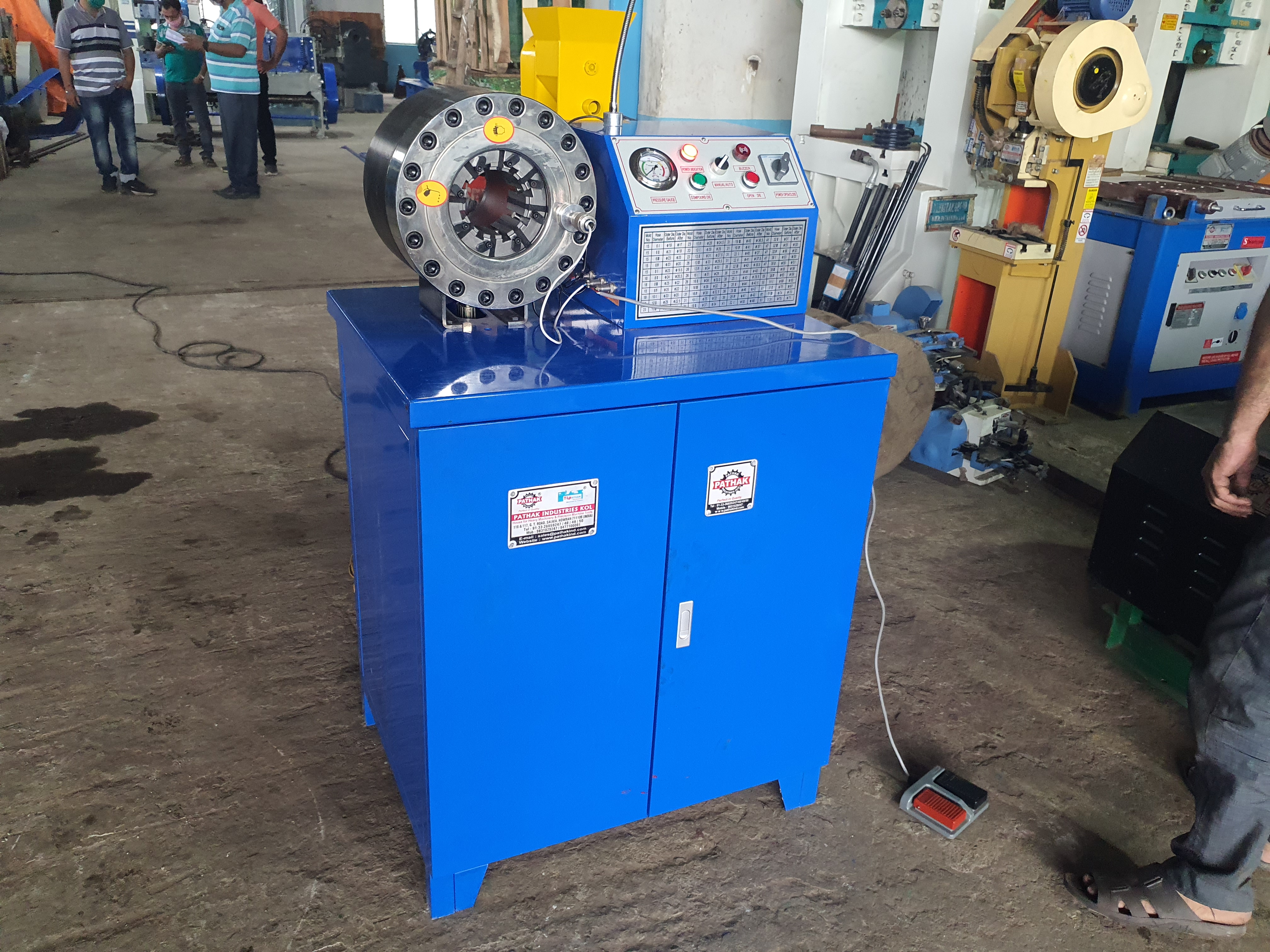

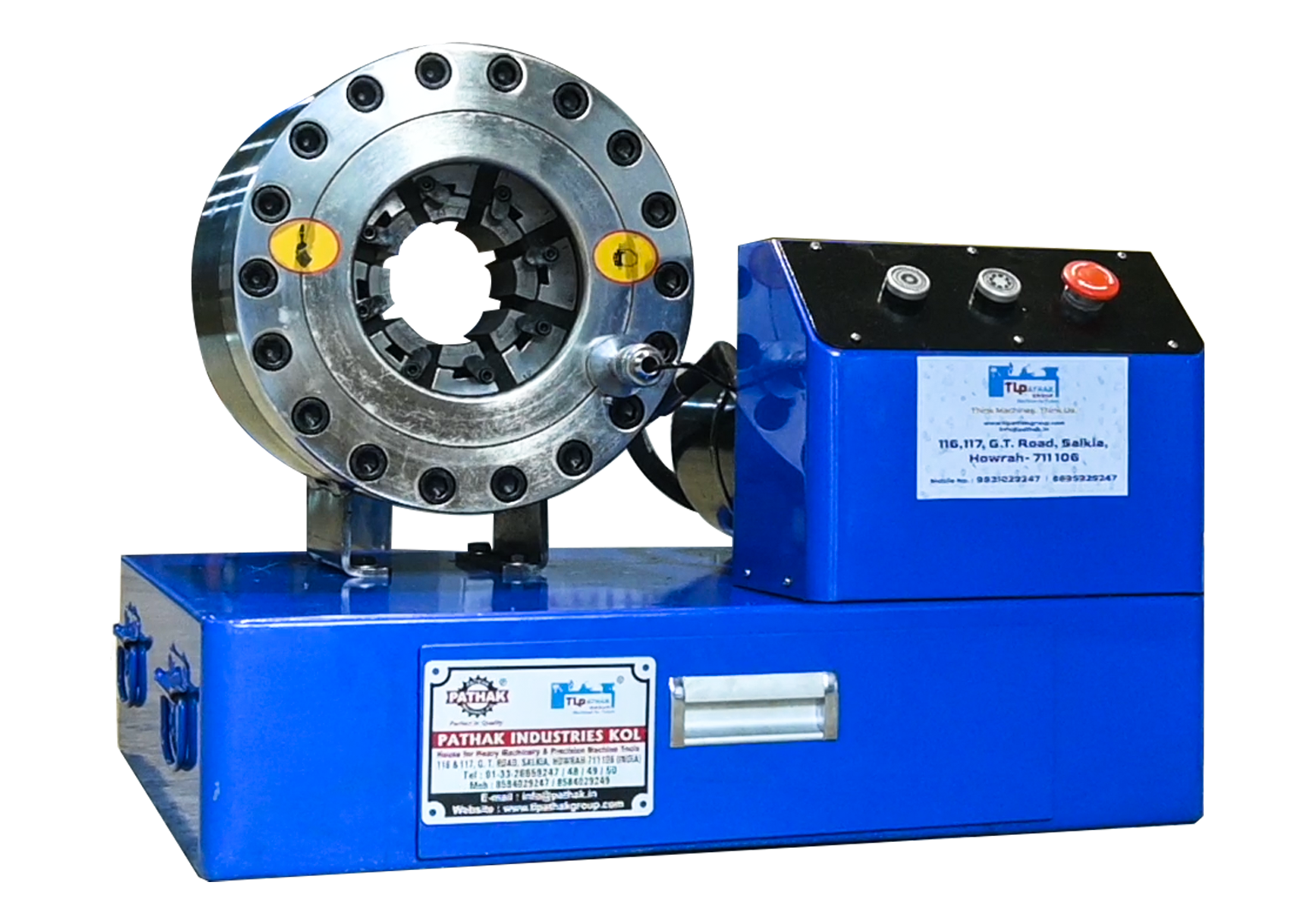

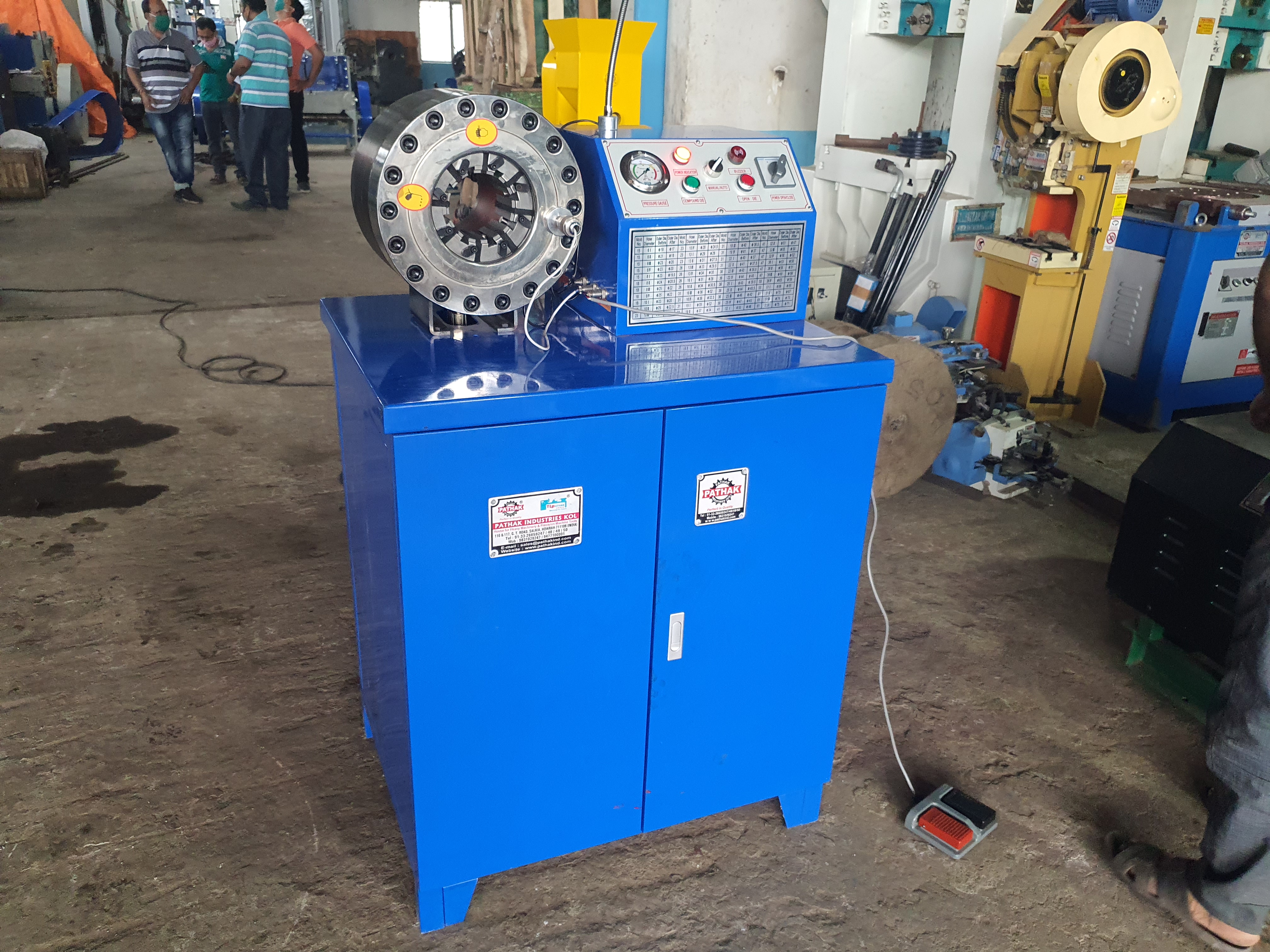

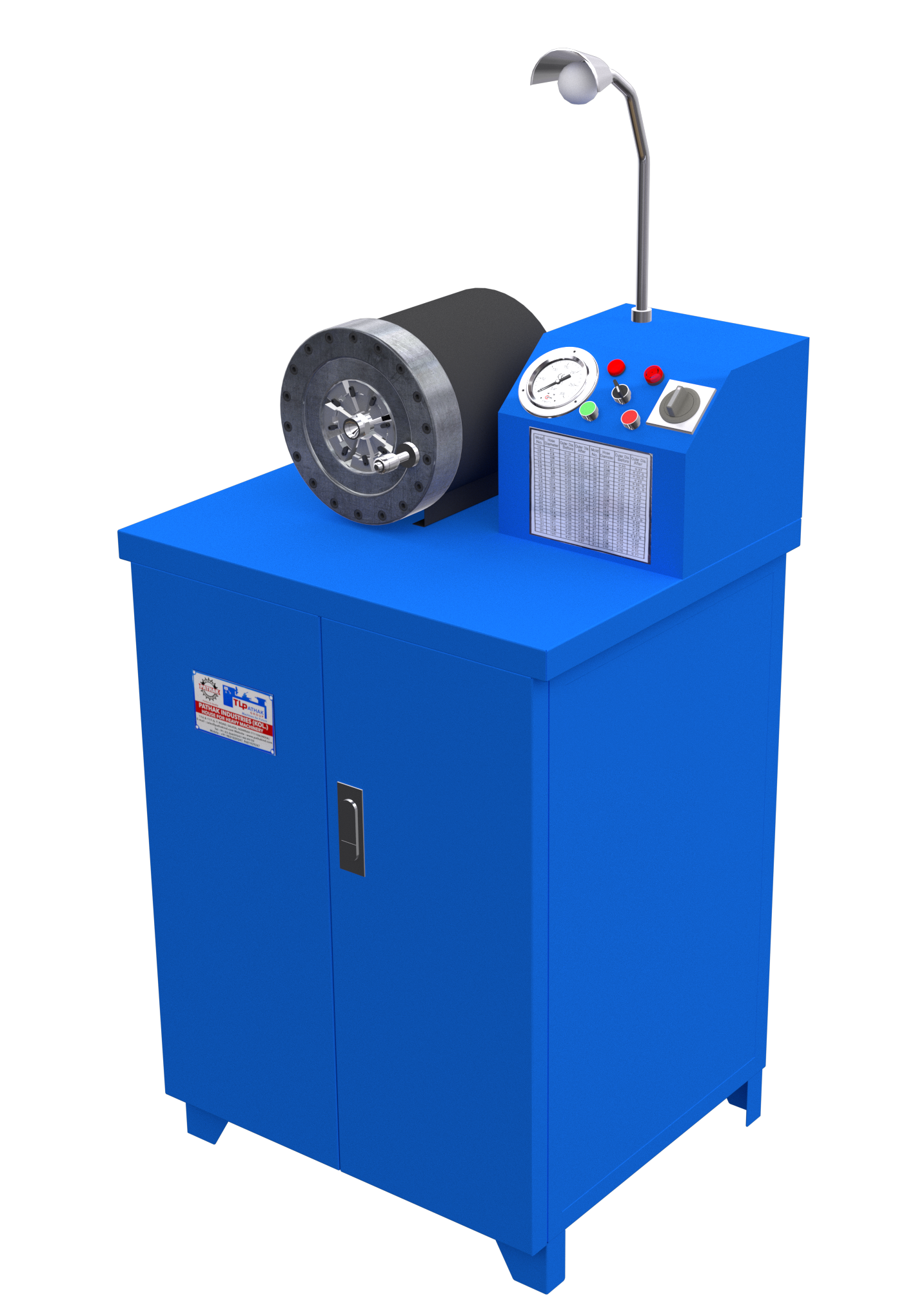

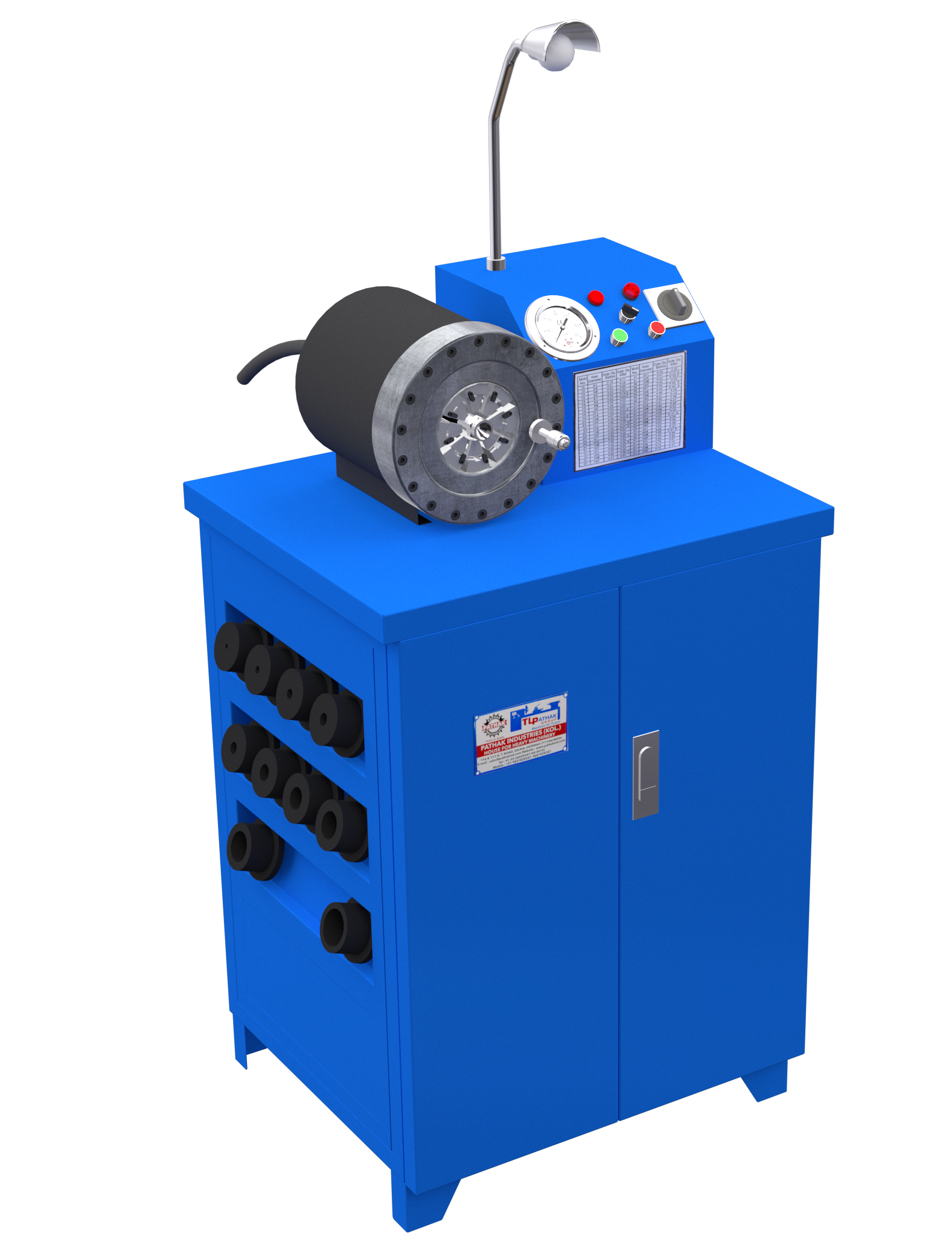

MODEL PHC 1
Hydrolic Hose Crimping Machine
Experience a new level of convenience and precision in hydraulic hose assembly with the Indiecrimp Veer, a compact yet powerful crimping machine designed to streamline your operations. Engineered for durability and ease of use, the Indiecrimp Veer is the perfect solution for workshops, service trucks, and on-site maintenance.
Specification
Contact| Crimping Range | 6-51mm (1/4"-2") |
| Accuracy | 0.01m |
| Swept Volume | 2.5L/5L (Optional) |
| System Pressure | 31.5Mpa |
| Power | 3KW |
| Voltage | 220V 50HZ Single Phase |
| Buckling Pressure | 500T |
| Oil Quantity | 40L |
| Efficiency | 200pcs/h |
| Dimension | 800*630*1300mm |
| Package Dimension | 890*710*1430mm |
| Net Weight | 310kg |
| Gross Weight | 320kg |
| Maximum Open Diameter | 114mm |
| Range | ± 30mm |
Key Features:
- Compact and Portable: The Indiecrimp Veer's small footprint and lightweight design make it easy to transport and maneuver, allowing you to crimp hoses wherever you need them.
- Powerful Performance: Despite its compact size, the Indiecrimp Veer delivers exceptional crimping force, ensuring secure and reliable hose connections every time.
- User-Friendly Operation: Intuitive controls and a clear digital display make the Indiecrimp Veer simple to operate, even for those with limited experience.
- Versatile Crimping Capabilities: Accommodates a wide range of hose sizes and types, making it suitable for various industrial applications.
- Built to Last: Constructed with high-quality materials and robust components, the Indiecrimp Veer is designed for long-term durability and reliability.
Ideal for:
- Construction & Infrastructure: On-site repairs and maintenance of hydraulic equipment.
- Manufacturing & Industrial: In-house hose assembly and maintenance.
- Automotive & Transportation: Fleet maintenance and repair services.
- Agriculture & Forestry: Equipment servicing and repair in the field.
Experience the difference with the Indiecrimp Veer. Contact TL Pathak Group today for a personalized quote and discover how this compact powerhouse can revolutionize your hydraulic hose crimping operations.
Boost Productivity
Minimize downtime and maximize efficiency with on-site crimping capabilities.
Enhance Safety
Ensure secure and leak-free hose connections, reducing the risk of accidents and equipment damage.
Improve Customer Satisfaction
Provide faster turnaround times and exceptional service with efficient hose crimping solutions.
Reduce Costs
Eliminate the need for outsourcing hose assembly and save on labor and transportation expenses.
