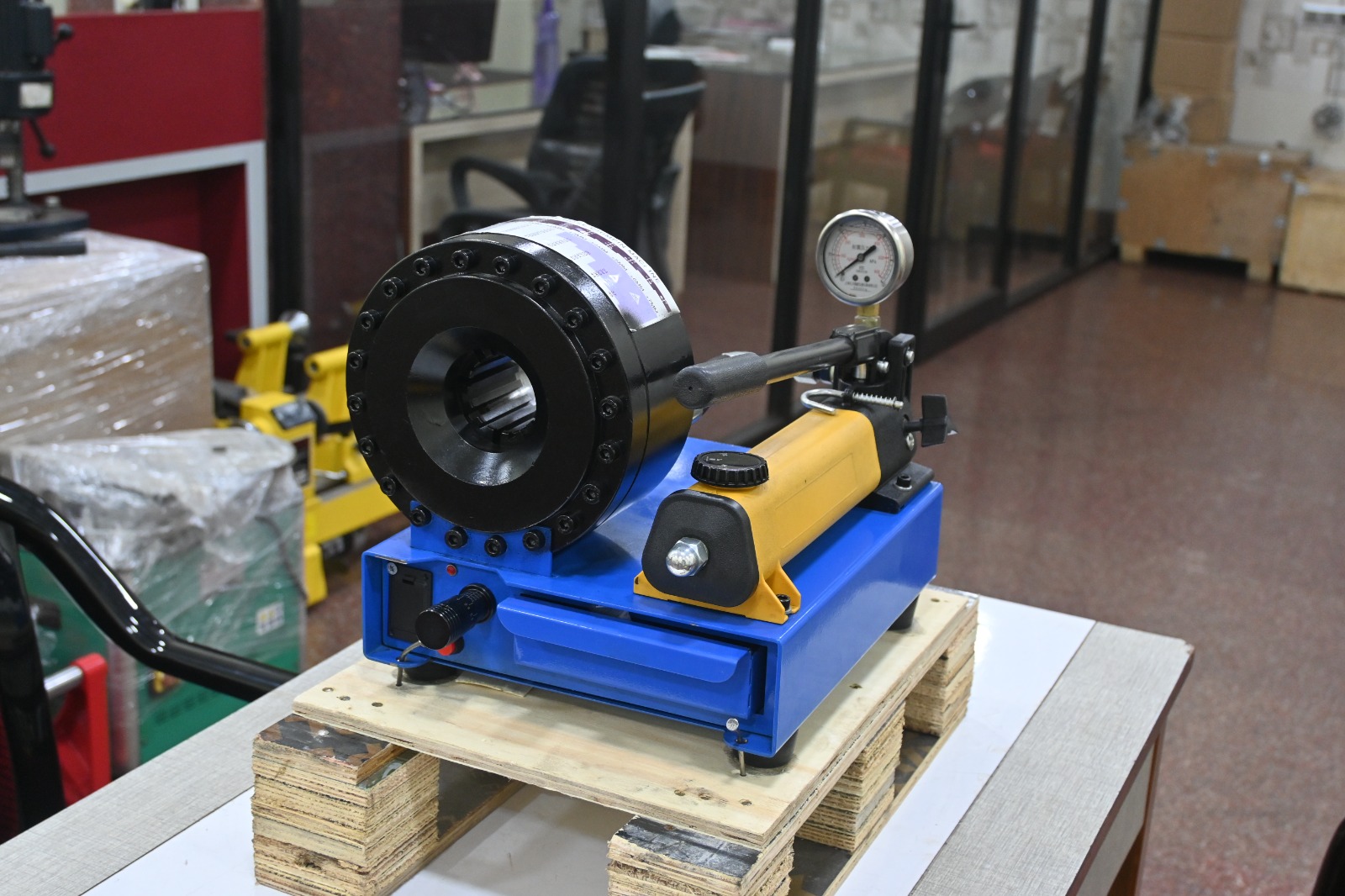

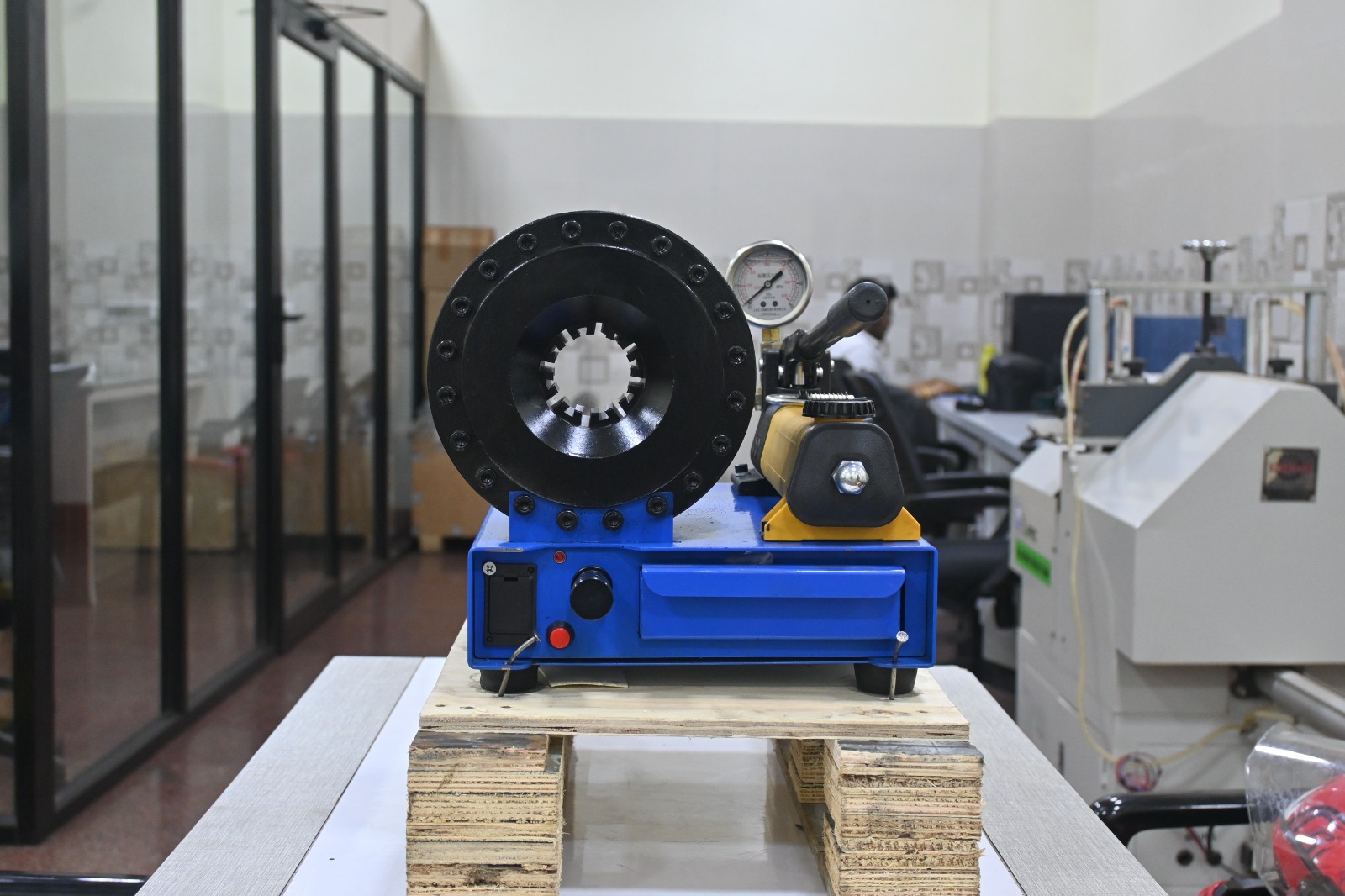

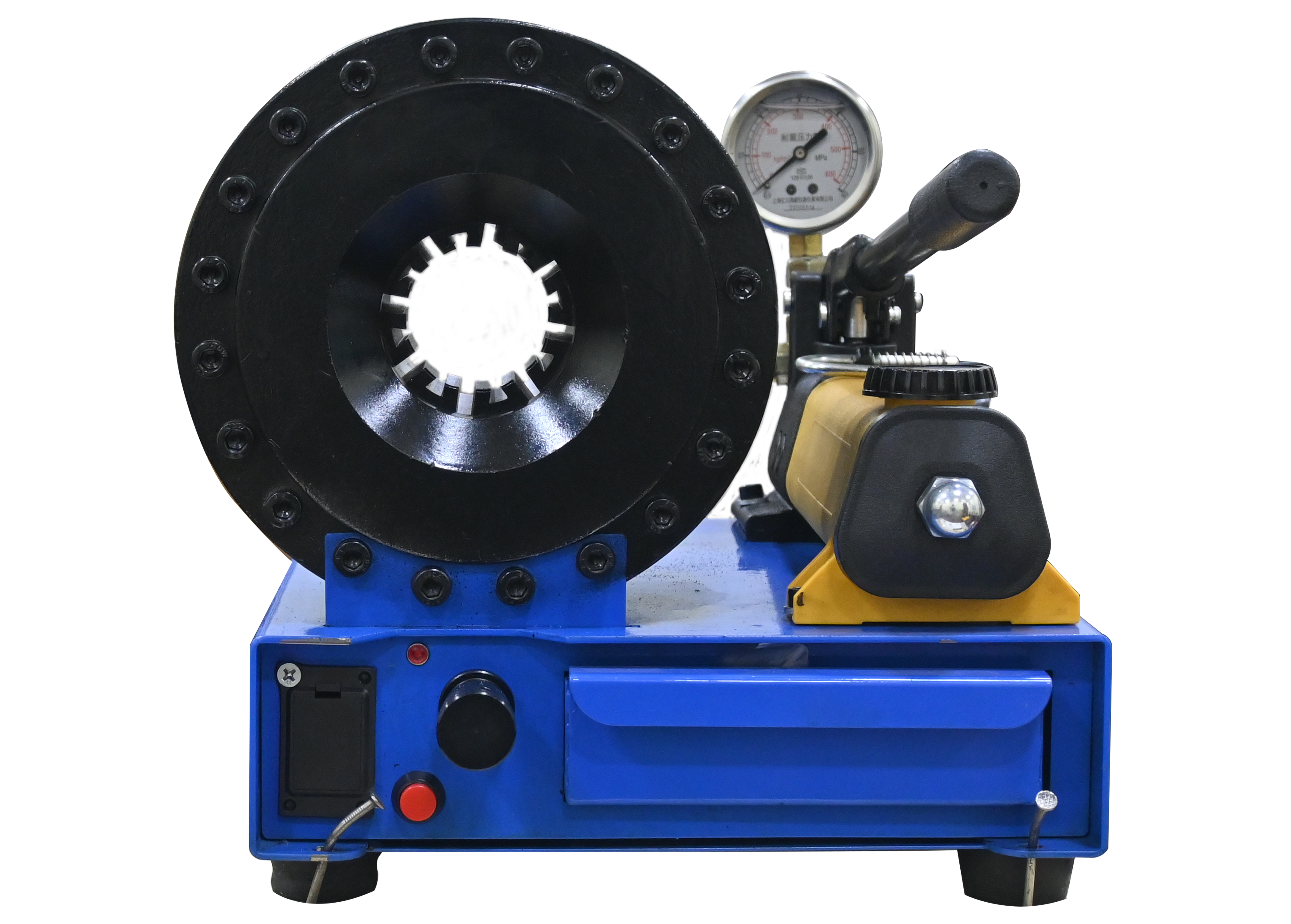

Manual Hose Crimper Machine (Hydra Hand-1 inch)

Massive Crimping Capacity: Effortlessly crimp hoses with diameters up to 4 inches, making it ideal for heavy-duty applications in construction, mining, agriculture, and more.
Unmatched Power: Equipped with a robust hydraulic system, the Vishal delivers exceptional crimping force to ensure secure and leak-free connections even on the largest hoses.
Precise Control: Intuitive controls and a user-friendly interface provide operators with precise control over the crimping process, resulting in consistent, high-quality crimps every time.
Rugged Durability: Built to withstand the rigors of demanding industrial environments, the Vishal boasts a heavy-duty construction and premium components for long-lasting performance and minimal downtime.
Safety First: Integrated safety features protect operators and equipment during the crimping process, ensuring a safe and efficient working environment.

Model: TLPMHHC

The Hydra Hand-1 inch is a manual hose crimper machine designed for crimping hydraulic hoses up to 1 inch in diameter. It operates without electricity or compressed air, making it ideal for remote and on-site applications. Built with high-strength steel, it ensures durability and reliable performance. Its compact, lightweight design allows easy portability, while the hand-lever mechanism provides effortless crimping. Equipped with interchangeable dies, it accommodates various hose sizes and fittings. Suitable for hydraulic hose assembly, industrial maintenance, and field repairs, the Hydra Hand-1 inch is a cost-effective, user-friendly solution for professionals needing efficient hose crimping on demand.

Specification

Contact

Hose clamping range	1/4'' to 1'' (Hose ID) 1SN/2SN
Max hose size crimped	1'' 2SN
Buckle pressure	1000KN
Mold Quantity	6 Sets for wire hose+4 sets for AC hose
Mold Number	#15, #18, #23, #26 (60mm), #31, #36 (70mm)
Mold NO. for AC hose	#13 #16 #20 #25
Systematic pressure	40Mpa
Dimension (LWH)	420x360x345mm =0.06CBM
Weight	35Kgs
Fuel tank capacity	1L
